上海众翺实业有限公司

    Shanghai ZA Industry Co;Ltd

ADD：85#SHENGWA Road,pudong,Shanghai China         ADD:

PHONE：13611882745                                  PHONE：

CONTEXT：Zhiping.Gao                               CONTEXT：Chen

FAX：021-58153130                             FAX：



名称

Name

设备规格及参数（全部采用不锈钢耐腐蚀性特别强）

Equipment specifications and parameters

数量

单价（人民币）

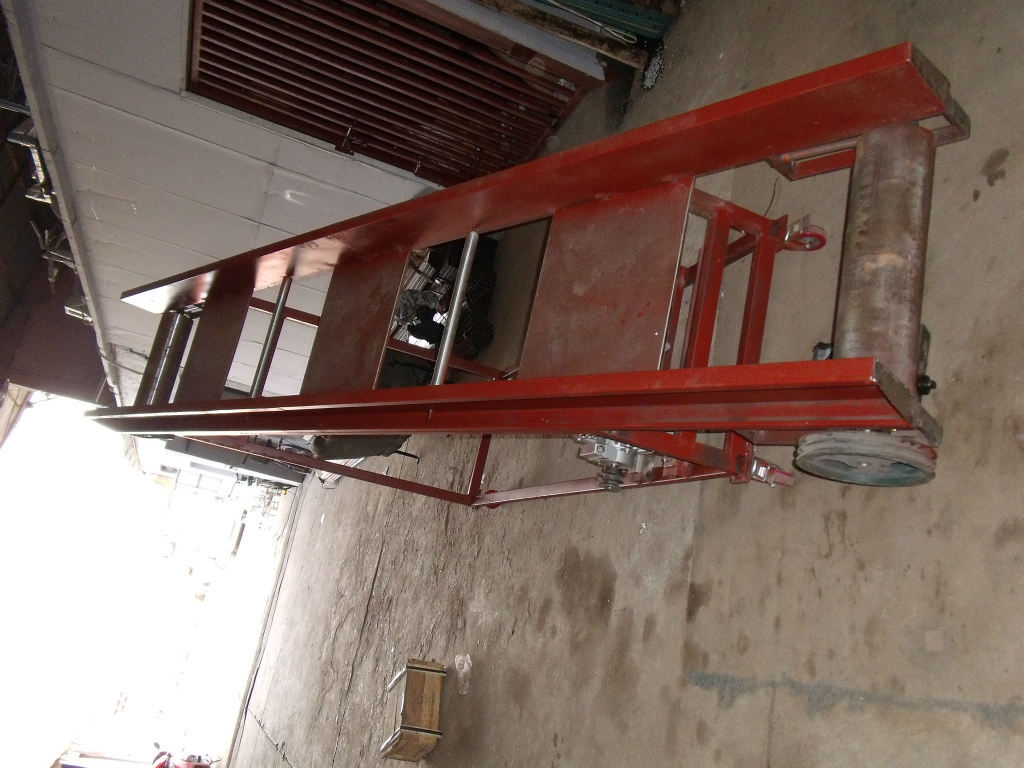

1：输送带

Conveyor belt

1：本输送带电机配备上海大速全铜电机，电机功率1.5KW,且可以按照生产要求调解输送速度；

  The conveyor motor speed copper and Shanghai with a motor, motor power 1.5KW, in ordance with production requirements and can mediate transmission speed;

2：输送带采用PVC3.0材质的皮带，具有耐磨、防滑、防腐蚀、防渗漏、使用年限长等优点，是客户首选材质；

  Conveyor belt materials using PVC3.0 with wear-resistant, non-slip, anti-corrosion, anti-leakage, long service life, etc., is the first choice material;

3：输送带根据生产需求宽度800mm,长度是6000mm，高度根据破碎机设置；

  The width of conveyor belt ording to production needs 800mm, length 6000mm, height under the crusher setting;

2

价格面议

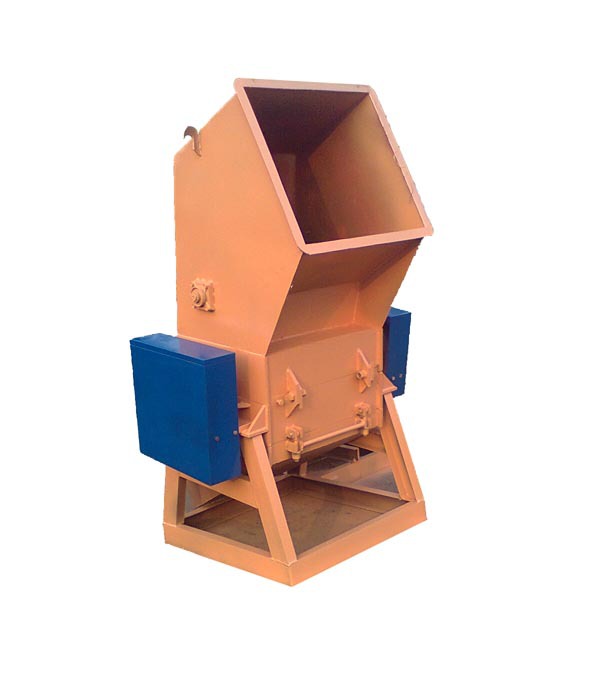

5：900型强力粉碎机

900-strong Crusher

1：此款破碎机具有高强力，粉碎尺寸均匀，出料速度快等优点采用高碳钢经过精湛专业打磨工艺使其具有表面光滑等优点；

   This section crusher with high strength, uniform size crushing, the material speed, etc. After a consummate professional high carbon steel with a grinding process to smooth the surface, etc.;

2：刀片采用日本进口SKD3型材质，具有锋利，超级耐磨，遇热不变形，且采用三角型刀架，大大提升破碎速度，定刀6把，动刀9把，经过科学专业配比，使其具有真正的强大粉碎效果，是真正意义的强力粉碎机；

   Blade material imported from Japan SKD3 type, with a sharp, super-resistant when exposed to heat deformation, and the use of triangular knife, broken greatly enhance the speed, fixed knife 6, knife 9, after the ratio of science to truly powerful crushing effect is truly powerful grinder;

3：本900型强力粉碎机电机配备上海大速全铜电机，电机功率45KW,超级加大口径900*600，提升进料速度与数量；产能可以达到1500KG/H,

   This powerful grinder motor with a 900-speed copper and Shanghai motor, motor power 45KW, 900 * 600 super caliber to increase and enhance the speed and quantity of feed; production capacity up to 1500KG / H,

4：电机设有过载保护开关，操作简单，安全可靠，进料部位采用密封设置，防止散料非常机械外；

   Motor with overload protection switch, easy, safe and reliable feed set or sealed to prevent the bulk material outside the very mechanical;

5：筛网直接按照客户生产要求设置；

   Screen set directly in ordance with customer production requirements;

2

价格面议

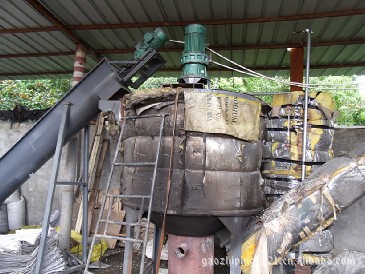

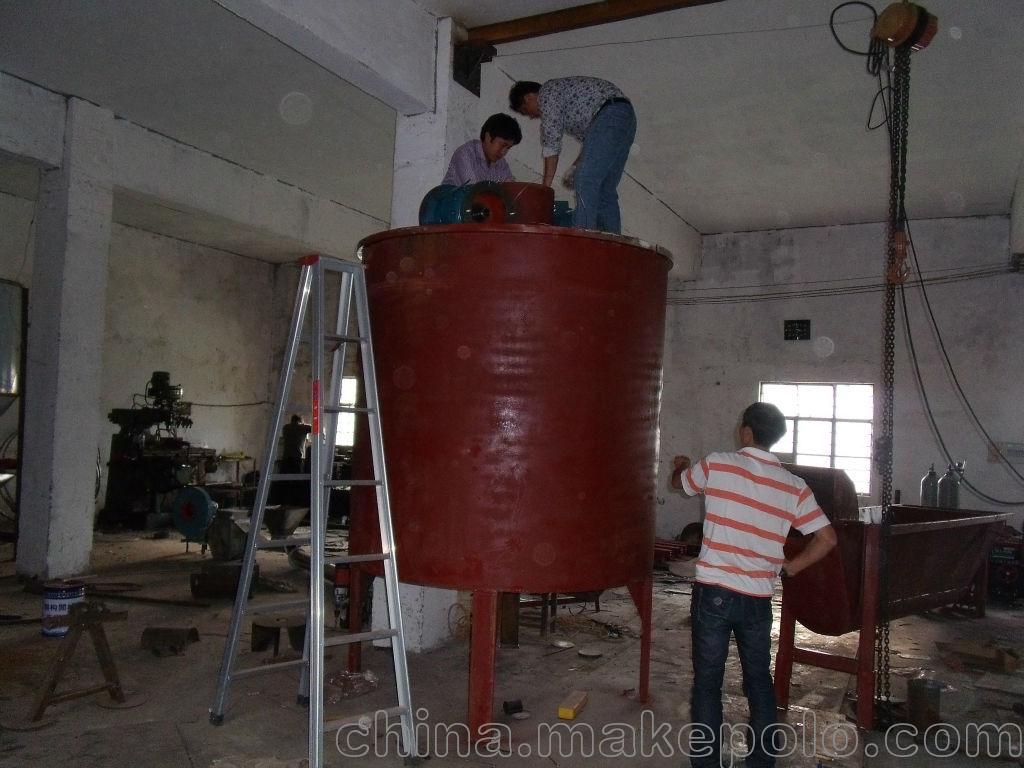

7：加热搅拌锅

Heating and stirring pot

1：经过双层设计的加热锅炉，能够快捷有效的去除塑料片的油渍，污渍

After double designed heating boiler, can be fast and effective removal of plastic film grease, stains

2：本输送带电机配备上海大速全铜电机，电机功率5.5KW；

The conveyor belt motor with great speed Shanghai copper motor, motor power 5.5KW;

3：设备直径1900mm,高度2000mm；

Device diameter 1900mm, height 2000mm;

翻译结果重试

抱歉，系统响应超时，请稍后再试

2

价格面议

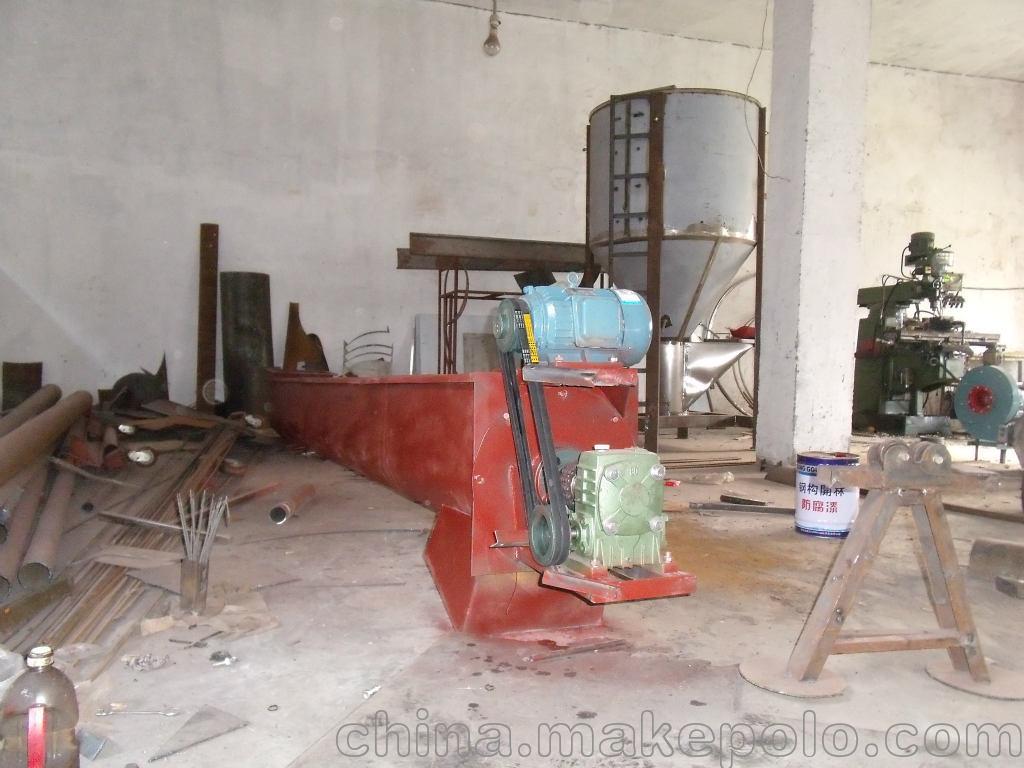

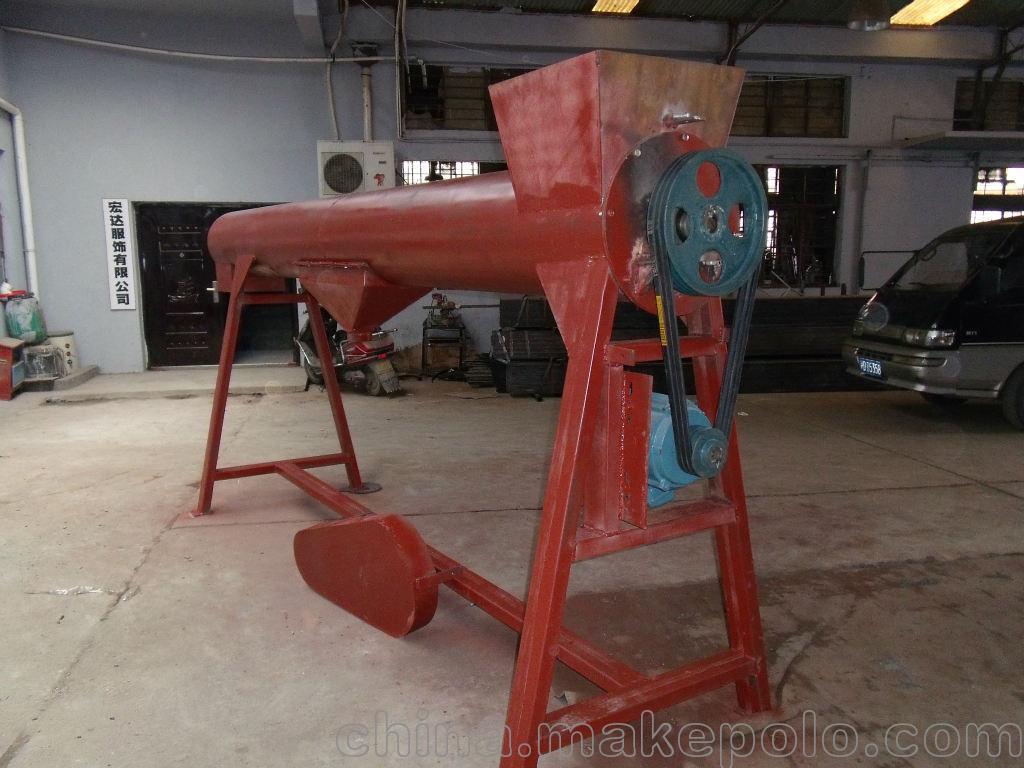

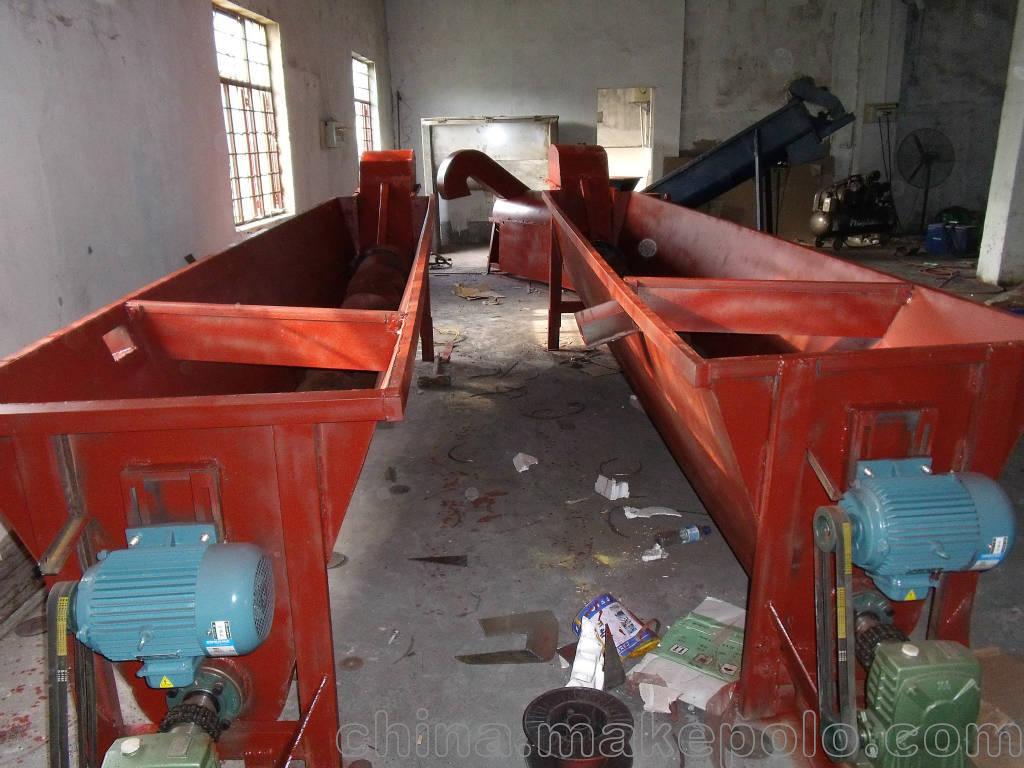

10：双螺杆漂洗龙（加磨片）

Single screw rinsing Dragon ( plus. )

1：经过双螺杆漂洗把杂质和商标类纸质去除，把杂质从瓶片中分离出来，经过第一个单螺杆漂洗龙后，洁净度可以达到98%；

After a single screw rinse impurities and trademarks of paper to remove the impurities from the bottle, separated, after a first single screw rinsing dragon, clean degree can reach 70%;

2：本输送带电机配备上海大速全铜电机，电机功率4KW；

The conveyor belt motor with great speed Shanghai copper motor, motor power 4KW;

3：设备直径400mm,高度6000mm

Device diameter400mm, height6000mm;

Translation

Single screw washing tank (reinforced rub)ф400*6000 4KW1set

3

价格面议

12：立式脱水机

Vertical dewatering machine

1:快速脱水（脱油），脱水效果好，零件无水渍残留，避免工件氧化或生锈，提升成品光泽度 ,脱水槽及外壳为不锈钢材质，防腐防锈，坚固耐用,本脱水机采用整体不锈钢和铸铁制造；并设有刹车器，提高使用效率及操作安全性 、结构合理，功能实用，可靠耐用

Rapid dehydration ( oil ), good dewatering effect, parts water stain  residue, avoiding the oxidation or rust, upgrade products gloss, de   watering tank and the shell is made of stainless steel, anti-corrosi   on rust-proof, sturdy and durable, the dewatering machine adopts t   he integral stainless steel and cast iron; and a brake device, impr   ove the efficiency and safety of operation, structure reasonable, fu   nctional and practical, reliable and durable

2:本输送带电机配备上海大速全铜电机，电机功率5KW；

The conveyor belt motor with great speed Shanghai copper motor, motor power 5 KW;

3:设备高度1100mm、长度5000mm、宽度1000mm;

The height of the equipment 1100mm, length 5000mm, width 1000mm;

Translation

:Cemtrifugal dehydrator L 2430*W900*H2400KW 1set

1

价格面议

烘干机

Wind machine with 4KW + 8KW electrothermal wind barrel

1：经过热风吹进热风筒，把脱水机余下的水分烘干；

After the hot air blowing hot air cylinder, the remaining moisture drying dewatering machine;

2：本输送带电机配备上海大速全铜电机，电机功率4KW风机+8KW电热过风桶；

The conveyor belt motor with great speed Shanghai copper motor, motor power 4KW fan + 8KW electrothermal wind barrel;

3：设备直径600mm,高度2000mm；

Device diameter 600mm, height 2000mm;

Translation

Blower 4KW+8KW HotTankф600*2000 7.5KW1set

价格面议

备注

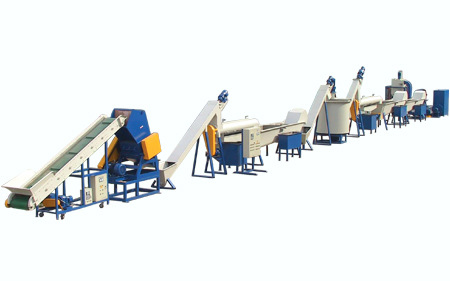

此设备可以每小时出清洗好的PET料2T左右！请比较！
